POLYCOM SILANE XLPE – SILOXANE® ONE STEP TECHNOLOGY

  • KTT100PA is the product code of PolyCom XLPE compound in granule type, used for insulation in low voltage wire and cable production.
  • Silane XLPE compound – one step technology – with KTT100PA code is a main product of PolyCom that mainly made of imported high-quality LLDPE and other suitable addictives such as: cross-linking agents, antioxidant, heat stabilizer, etc. and being produced from a closed production process of mixing with other addictives.
  • KTT100PA consists of all material mixed polyethylene, silane, and other addictives already mixed before packaging in one vacuumed aluminum bag with Kraft paper outside. Material should be used latest within 02 hours after mixing for power cable production. Never using material if packaging bag is unsealed, broken or penetrated.
  • KTT100PA has some key features such as: easy-to-use, simple processing steps, high productivity, stable temperature, fast curing time in ambient weather temperature, much efficient for low voltage cable production.

1. PRODUCT SPECIAFICATIONS

NO.

ITEM

SPEC. IEC60502

MEAS. UNIT

KTT100PA

STANDARD

1

Density



g/cm3

0.92

ASTM D1505

2



Tensile strength

≥ 12.5

N/mm2

20

IEC60811-1-1

3



Elongation at break

≥ 200

570

IEC60811-1-1

4

Brittleness temperature ≤

oC

-76





5

135oC at 168h

Aging in air Circumstance

Change of tensile

Max. ±25

1.8

IEC60811-1-2

Change of elongation

Max. ±25

-10

IEC60811-1-2



6

Hot set elongation

200oC at 0.2MPa,

15min

Elongation under load

Max.175

75

IEC60811-2-1

Permanent deformation after cooling

Max.15

2.5

IEC60811-2-1



7

50HZ 20oC

Relative dielectric constant

--

1.9

IEC60250

Dissipation factor

--

1×10-3

IEC60250

8

Volume resistance rate at 20oC

Ω.cm

1×1017

IEC60093

9

Dielectric strength at 20oC

KV/mm

40

IEC60243

10

Shrinkage

≤ 4

%

2.5

IEC60811-1-3

  1. PROCESSING CONDITION:

- Unpack KT100PA bag and put all material into extruder hopper.

- Using general extruders for PVC or PE.

- Keeping extruder in a stable temperature as below:



Zone 1

Zone 2

Zone 3

Zone 4

Mould Head

Die

160

160~170

170~180

180~190

200 ~ 220

with

flame torch











3. CURING TIME IN AMBIENT WEATHER TEMPERATURE (AT 25OC, 60% – 70% HUMIDITY)



Sheet thickness



KTT100PA



Result



1.1mm



05 days



Fully cured



1.3mm



08 days



Fully cured



1.5mm



12 days



Fully cured



1.8mm



15 days



Fully cured



2.0mm



18 days



Fully cured



4. PACKAGING & STORAGE

4.1. Packaging condition

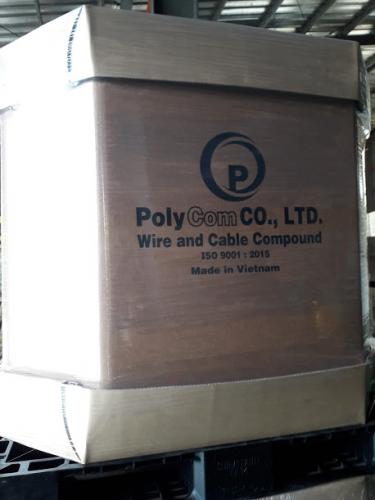

KTT100PA is packed into one vacuumed aluminum net 520kg bag with carton Octabin outside layer.

4.2. Storage & Lifetime condition

KTT100PA should be used within 06 months from the date of production in good condition of cool and dry environment and

  • Keep in virgin sealed aluminum bag
  • Storage in warehouse condition with temperature under 35oC
  • Keep out of direct sunlight or outdoor storage
  • Better to use up all material within 12 hours after opening aluminum bag. If not empty use, should repack open bag to prevent moisture penetrated. Repacked bag should be used within 24 hours only.

NOTICE:

Above specification and standard of KTT100PA product are exact based on Silane XLPE one steps technology, it is fully-tested in sheet form sample at PolyCom factory. Application of this product, upon each usage condition is varied from machine to machine, but not considerable. Accuracy rate of this product should be tested in the final product is low voltage electric cable.

1. PRODUCT AND COMPANY IDENTIFICATION

  1. Chemical Name and Code: XLPE for low voltage cable (SI-XLPE) - KTT100PA
  2. Advisable use and Restriction
  • Advisable use: Wire and cable
  • Restriction of product using: Use for recommended use.
  1. Manufacturer / Supplier / Distributor information:

Supplier: Polycom Co., Ltd.

Address: Lot C.II.I-1, LONG THANH INDUSTRIAL PARK, TAM AN VILLAGE, LONG THANH DISTRICT, DONG NAI PROVINCE, VIETNAM S.R

Respondent: R&D Center, QA Team

Emergency response number: 84-251-3-514-383

2. HAZARDS IDENTIFICATION

Globally Harmonized System of Classification and Labeling of Chemicals (GHS)

Hazard classification

  1. Physical hazard: Not classified
  2. Health hazard: The product is not classified as a dangerous preparation. However, inhalation of dust may irritate the respiratory tract.
  3. Environment hazard: The product is not considered dangerous for the environment.

Allocation label elements including precautionary statements

  1. Pictogram and symbol:
  1. Signal word: Warning
  2. Hazard statement:
  • H303 May be harmful if swallowed.
  • H315 Cause skin irritation.
  • H320 Cause eye irritation.

Precautionary statements

  1. Prevention:
  • P264 Wash thoroughly after handling.
  • P280 Wear protective gloves / protective clothing / eye protection / face protection.
  • P264 Wash thoroughly after handling.
  1. Response:
  • P312 Call a POISON CENTER or doctor/physician if you feel unwell.
  • P302+P352 IF ON SKIN: wash with plenty of soap and water.
  • P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
  1. Storage: Not applicable.
  2. Disposal: Not applicable.



3. COMPOSITION/INFORMATION ON INGREDIENTS



Chemical Name

Common Name Synonyms

CAS No.

Liner Low Density Polyethylene

Butene / ethylene copolymer

25087-34-7

Trimethoxyvinylsilane

-

2768-02-07

Several kinds of addictives

-

Trade Secret







4. FIRST AID MEASURES

1) Eye contact: If contacted eyes, rinse or flush eyes with water at least 15 minutes. In case of an uncomfortable sensation, consult a doctor or ophthalmologist.

2) Skin contact: If contacted skin, remove contaminated clothing and shoes. Wash skin with soap and water for at least 15 minutes.

3) Ingestion: If swallowed amount of substance, do not induce vomiting but seek medical advice/attention.

4) Inhalation: If fumes or combustion inhaled, move victim from contaminated area to non-contaminated place with fresh air and seek medical advice.

5) Other potential health effects: None known

5. FIRE-FIGHTING MEASURES

1) Flammable properties: None

2) Flash point: >250 deg. C (>484.6 deg. F)

3) Auto ignition Temperature: > 300oC
4) Burning Rate: None known

5) Suitable (and unsuitable) extinguishing media:

- Suitable extinguishing media: Carbon dioxide blanket, Water spray, Dry powder, Foam.

- Unsuitable extinguishing media: Not available.

6) Specific hazards arising from the chemical (ex: hazardous combustion products)

- Thermal decomposition products: Carbon dioxide (CO2), carbon monoxide (CO), other hazardous materials, and smoke are all possible.

- Fire and Explosion hazards:

  • May form explosive mixtures with air
  • Avoid the formation of dust and contact with ignition source

7) Special protective equipment for fire-fighters:

- Full-face self-contained breathing apparatus (SCBA) used in positive pressure mode should be worn to prevent inhalation of airborne contaminants.

- Structural firefighters’ protective clothing will only provide limited protection.



6. ACCIDENTAL RELEASE MEASURES

1) Personal precautions, protective equipment and emergency procedures:

- Put on appropriate personal protective equipment.

- Minimize contact with skin and eyes.

- Take appropriate preventive measures.

- Avoid inhalation of dust.

- Ventilate the leaked area.

2) Environmental precautions and protective procedures:

- Ensure adequate ventilation.

- Prevent entry into waterways, sewers or basements.

3) The methods of purification and removal

- Collect in sealed containers for product recovery and safety measure.

- Ventilate leak area and recover products and clean the area.

7. HANDLING AND STORAGE

1) Precautions for safe handling:

- Wash thoroughly after handling.

- Use general dilution ventilation and/or local exhaust ventilation to control airborne exposes.

2) Conditions for safe storage:

- Store in a closed container.

- Save in cool, dry, and well ventilated place.

- Avoid contacting with severe heat, direct sunlight, and other source of ignition.

8. EXPOSURE CONTROLS/PERSONAL PROTECTION

1) Occupational Exposure Limits
- Korea Occupation of Safety and Health Regulation: Not available

- ACGIH: Not available

2) Appropriate engineering controls

- Provide local exhaust ventilation system or other engineering controls to keep the airborne concentrations of vapors below their respective threshold limit value.

- Check legal suitability of exposure level.

3) Personal protective equipment:

- Respiratory protection: Wear NIOSH or European Standard EN 149 approved full of half-face piece (with goggles) respiratory protective equipment when necessary.

- Eye protection: Wear safety glasses to protect eyes from scattering toxic substance.

  • Hand protection: Wear chemical resistant gloves to avo
